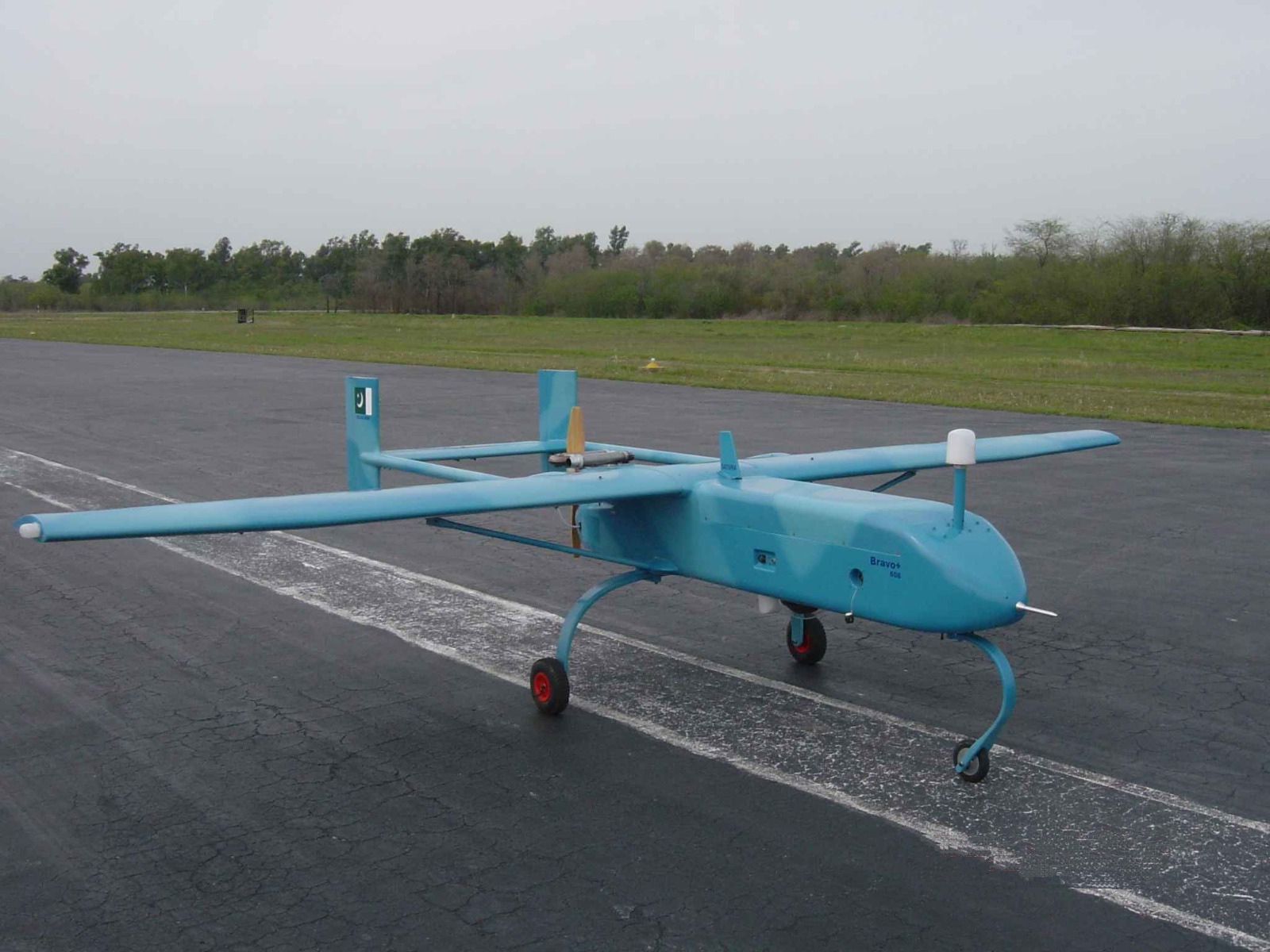

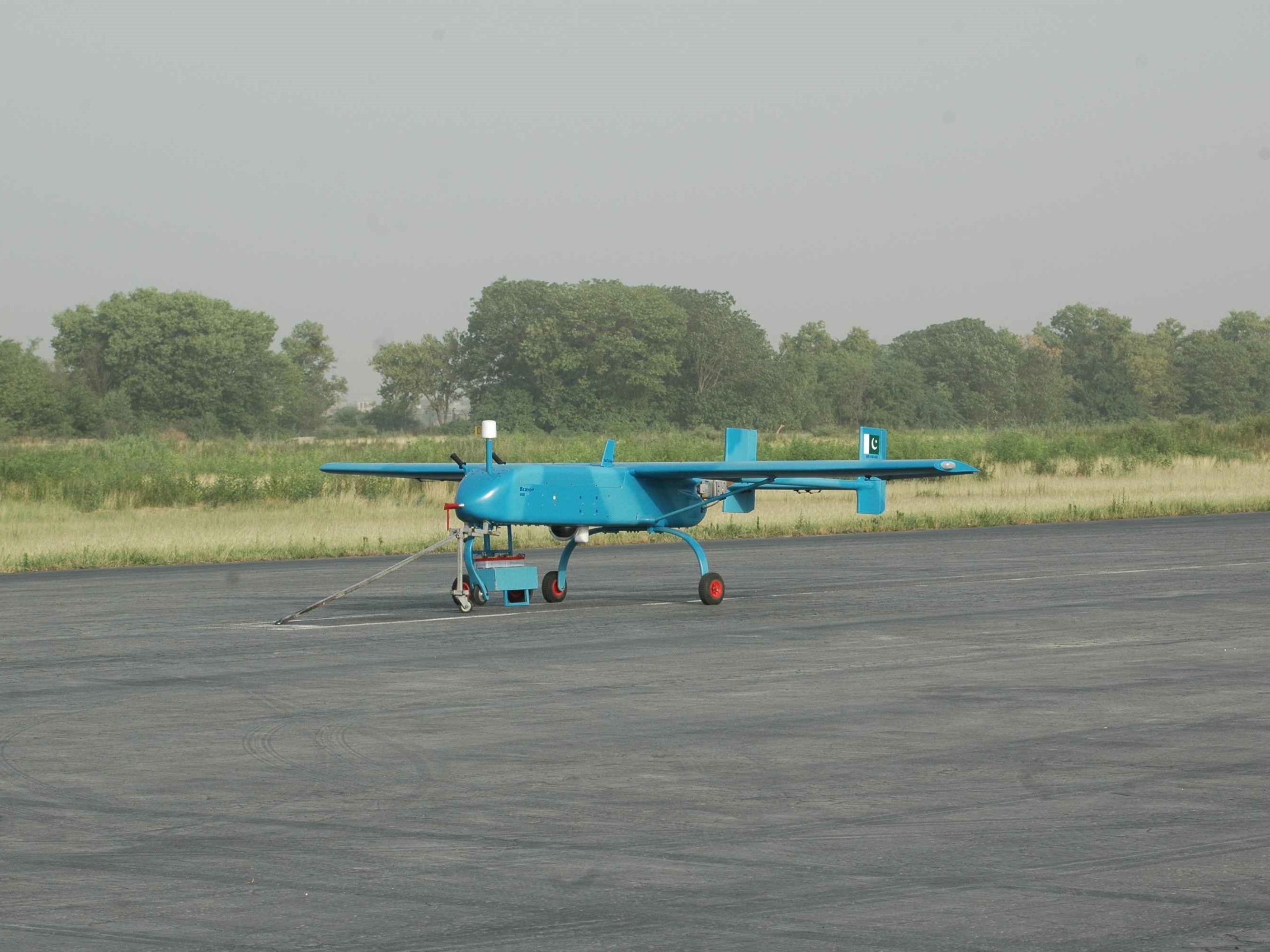

Bravo+

  • Category: Surveillance UAV

Specification:

  • Dimensions:Length 4.27m, Wingspan 4.92m (Shoulder Wing Monoplane,twin boom).
  • Weight(s): Max. takeoff weight 145 kg, Payload 15~25 kg.
  • Powerplant: 38 hp, 2 cylinder, 2 stroke Gasoline Engine.
  • Electrical Power: 28V, 900W.

Performance:

  • Speed: 130 kph.
  • Endurance: 4~5 hr.
  • Ceiling: 10,000 ft.
  • Range: 80~100+ km.

Control:

  • Guidance/Tracking: Remote control/pre-programmed autonomous navigation.
  • Datalink: Real time double datalink.
  • Launch: Wheeled.
  • Recovery: Wheeled.
  • GCS: 2 console, truck mounted.
